Facilities - Die Casting

State-of-the-art Die Casting Facilities

Factory
  • 108,000 sq. ft. die casting floor space in Taiwan
  • Die casting quality system: ISO 9001:2000
  • Die casting machine tonnage sizes: 150 ton-2,500 ton

Die Casting Tooling

Detailed die casting tooling equipment list.

Alloys Casted

  • Magnesium die casting: AZ91D, AM60B
  • Aluminum die casting:
    • ASTM: A380, A360, A383, A356
    • JIS: ADC1, ADC3, ADC6, ADC10, ADC12
  • Zinc die casting: Zamak #3, Zamak #5, ZA27, ZA8
factory-2_opt

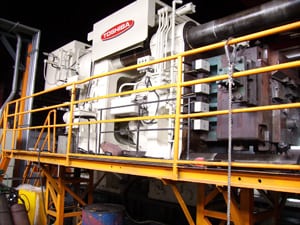

2500-ton-al-die-cast-8-m_opt

Widest Range of Die Cast Machines in Asia

We manufacture a wide range of die cast part sizes due to our very wide range of machine tonnage sizes, ranging from 150 ton to 2,500 ton (!). We are one of the very few die casters in Asia that can produce both very small (2 g) and very larger parts (up to 50 kg [110 lb.] for aluminum die cast parts).

Equipment Make Capacity Qty.
magnesium die casting Italpresse 750 ton 2
magnesium die casting Italpresse 500 ton 1
magnesium die casting Italpresse 200 ton 3
aluminum die casting Toshiba 2,500 ton 1
aluminum die casting Italpresse 1,350 ton 1
aluminum die casting Toshiba 800 ton 4
aluminum die casting Toshiba 650 ton 2
aluminum die casting Toshiba 350 ton 5
aluminum die casting Toshiba 250 ton 5
zinc die casting Local 200 ton 3
zinc die casting Local 150 ton 2
zinc die casting Local 75 ton 1
